Better Performances in Demanding Duties
The circuit breaker plays a vital role in distributing power and protecting the circuit and power equipment from overloading, short circuits, and undervoltage failure damage. They can also be used in electric motors for infrequent starting and overload protection as well as protection against short circuiting and undervoltage conditions.
Small volume, high breaking capacity, short arcing and anti-vibration.
OUR ADVANTAGE
1,From parts production and processing to finished products
2,High quality standard enterprise supplier,products are sold to dozens of countries around the world
3,Quickly lead times:Both of us ”Time is gold” ,7*20 hours online service with full service
4,Professional team,Research and development, design, production, sales integration
To be a result of ours specialty and repair consciousness, our corporation has won an excellent reputation amongst customers all around the entire world for China OEM 3p 4p MCCB 800A 125 160 250 400 630 350A, Our items have exported to North America, Europe, Japan, Korea, Australia, New Zealand, Russia and other countries. On the lookout ahead to make up a good and long-lasting cooperation with you in coming potential!
To be a result of ours specialty and repair consciousness, our corporation has won an excellent reputation amongst customers all around the entire world for China Molded Case Circuit Breaker, YUYE MCCB, Our products are very popular in the word, like South American, Africa, Asia and so on. Companies to “create first-class products” as the goal, and strive to provide customers with high quality products, provide high-quality after-sales service and technical support, and customer mutual benefit, create a better career and future!
Product details
| Name | Details |
| Enterprise code | Shanghai Yuhuang Electric Co.,ltd |
| Product category | Moulded case circuit breaker |
| Design code | 3 |
| Current rank | 125,160,250,400,630,800 |
| Breaking capacity | L=economical type,M=standard type,H=high score type |
| pole | 3P,4P |
| Part NO. | 300 No part(Please see the release part NO.table) |
| Rated current | 10A~800A |
| Operation type | None=Manual direct operation P=Electric operation Z=Manual manipulation |
| Use NO. | None=Power distribution type breaker 2=Protect motor |
| N pole shape | Four poles products’ N polar form:A type:N polar do not install over-current release,and N polar does not open and close together with other three.B type :N polar do not install over-current release,and N polar opens and close together with other three polarsC type :N polar installs over-current release,and N polar opens and closes together with other three polars.D type :N polar installs over-current release,and N polar electrifies all the time, at the same time,N polar does not open and closes together with other three polars. |
| Writing type | None=None(front writing),R(Back board writing),PR(plug-in) |
Product summary

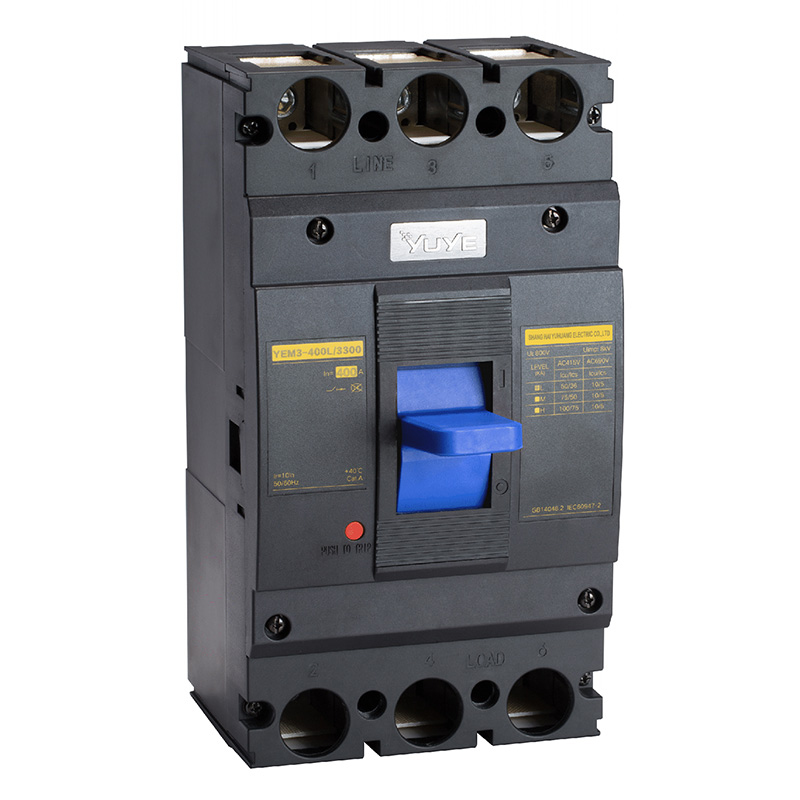

YEM3 series moulded case circuit breaker(hereinafter referred to circuit breaker)is applied in the circuit of AC 50/60 HZ,its rated isolation voltage is 800V,rated working voltage is 415V,its rated working current reaches to 800A ,it is used to transfer infrequently and infrequent motor start(Inm≤400A).Circuit breaker has over-load,short circuit and under-voltage protection function so that protects the circuit and power supply device from being damaged.This circuit breaker has the features of small volume,high breaking ability,short arc and anti-vibration.
Circuit breaker can be installed vertically or horizontally.
Operating conditions
1.Altitude:<=2000m.
2.Environmental temperature:-5℃~+40℃.
3.The relative humidity of the air does not exceed 50% at a maximum temperature of +40℃,higher relative humidities may be permitted at lower temperature,e.g.90% at 20℃.Special measure may be necessary in case of occasion condensation due to variations in temperature.
4.Pollution degree 3.
5.Installing category:Ⅲfor main circuit,Ⅱfor other auxiliary and control circuits.
6.The circuit breaker is suitable for the electromagnetic environment A.
7.There must be not any explosive dangerous and not any conducting dust,there must be not any gas which would corrode metal and destroy insulation.
8.The place would not by invaded by rain and snow.
9.The storage condition:the air temperature is -40℃~+70℃.To be a result of ours specialty and repair consciousness, our corporation has won an excellent reputation amongst customers all around the entire world for Hot-selling China OEM 3p 4p MCCB 800A 125 160 250 400 630 350A, Our items have exported to North America, Europe, Japan, Korea, Australia, New Zealand, Russia and other countries. On the lookout ahead to make up a good and long-lasting cooperation with you in coming potential!
